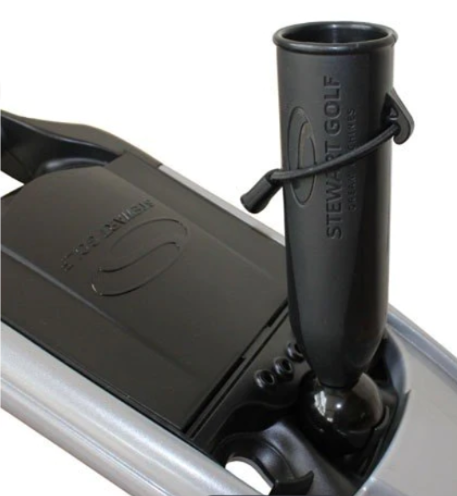

Your umbrella holder is supplied with a mounting plate and ball joint, which allow the holder to be securely attached to the trolley handle while also enabling angle adjustment.
Follow the steps below to install the umbrella holder:
1. Position the mounting plate
Locate the rear of the trolley handle, where you will find the central ball holder compartment. Place the mounting plate against the back of the handle, ensuring that it is correctly aligned with the middle ball holder slot.
2. Insert the ball joint
Take the ball joint and position it into the middle ball holder slot on the handle. Ensure that the ball joint sits correctly within the slot so that it can be secured properly.
3. Secure the ball joint to the mounting plate
Using the Allen key provided, insert the fixing screw through the mounting plate and into the ball joint. Tighten the screw by turning the Allen key clockwise until the ball joint and mounting plate are firmly secured to the handle.
4. Check the fitting
Once tightened, check that the mounting plate and ball joint are secure and do not move. The umbrella holder can now be attached and adjusted as required.
